Rated Power Output60 WNominal Input LevelBASS INPUT: -10 dBu/1 M ohm

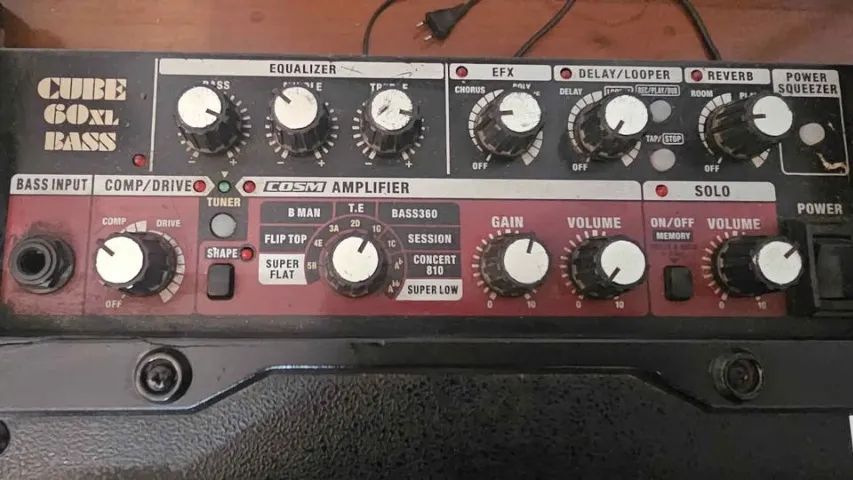

AUX IN: -10 dBuSpeaker25 cm (10 inches) + Tweeter (Coaxial, 2-way)ControlsPOWER Switch, TUNER Switch, POWER SQUEEZER Switch
[COMP/DRIVE]
COMP/DRIVE Knob (COMP, DRIVE)
[COSM AMPLIFIER]
TYPE Switch (SUPER FLAT, FLIP TOP, B MAN, T.E, BASS360, SESSION, CONCERT 810, SUPER LOW)
SHAPE Switch
GAIN Knob
VOLUME Knob
[SOLO]
ON/OFF, MEMORY Switch
VOLUME Knob
[EQUALIZER]
BASS Knob
MIDDLE Knob
TREBLE Knob
[EFX]
EFX Knob (CHORUS, POLY OCTAVE)
[REVERB]
REVERB Knob (ROOM, PLATE)
[DELAY/LOOPER]
REC/PLAY/DUB Switch
TAP/STOP Switch
DELAY/LOOPER Knob (DELAY, LOOPER)
[DI OUT]
GND LIFT Switch (OFF, ON)IndicatorsPower
COMP/DRIVE
TUNER
SHAPE
SOLO
EFX
DELAY/LOOPER
REC/PLAY/DUB
REVERB

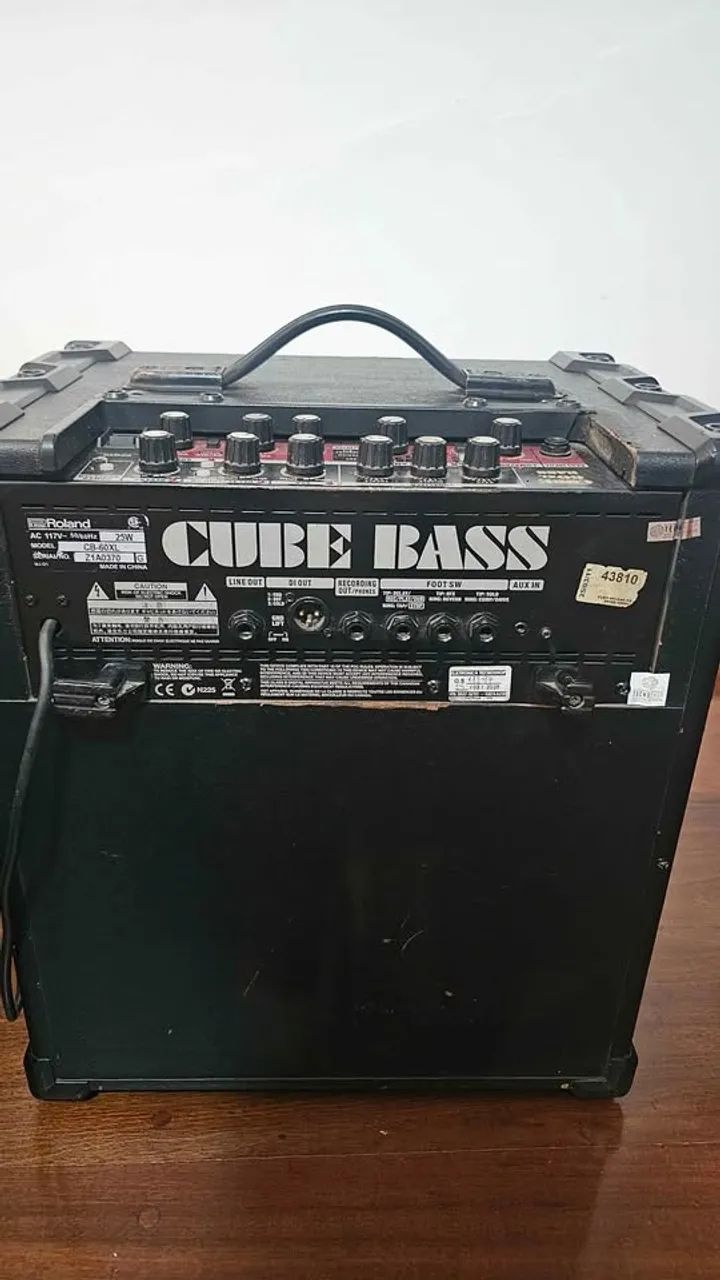

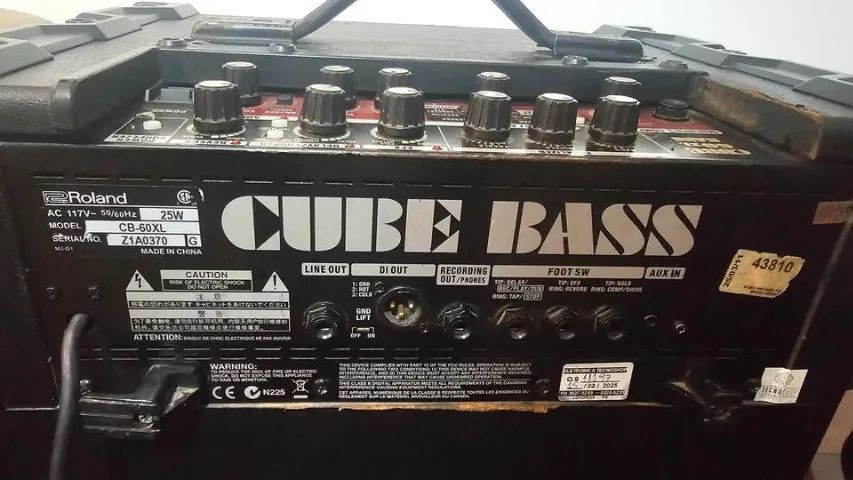

POWER SQUEEZERConnectorsBASS INPUT Jack (1/4" phone type)
AUX IN Jack (Stereo miniature phone type)
LINE OUT Jack (1/4" phone type)
DI OUT Jack (XLR type)
RECORDING OUT/PHONES Jack (Stereo 1/4" phone type)
FOOT SW Jack (TIP:SOLO, RING:COMP/DRIVE) (1/4" TRS phone type)
FOOT SW Jack (TIP:EFX, RING:REVERB) (1/4" TRS phone type)
FOOT SW Jack (TIP:DELAY/REC/PLAY/DUB, RING:TAP/STOP) (1/4" TRS phone type)Power Consumption25 WAccessoryOwner's ManualOptions (sold separately)Footswitch (BOSS FS-5L, FS-5U, FS-6, FS-7)Size and WeightWidth421 mm
16-5/8 inchesDepth325 mm
12-13/16 inchesHeight479 mm
18-7/8 inchesWeight16.2 kg
35 lbs. 12 oz.
